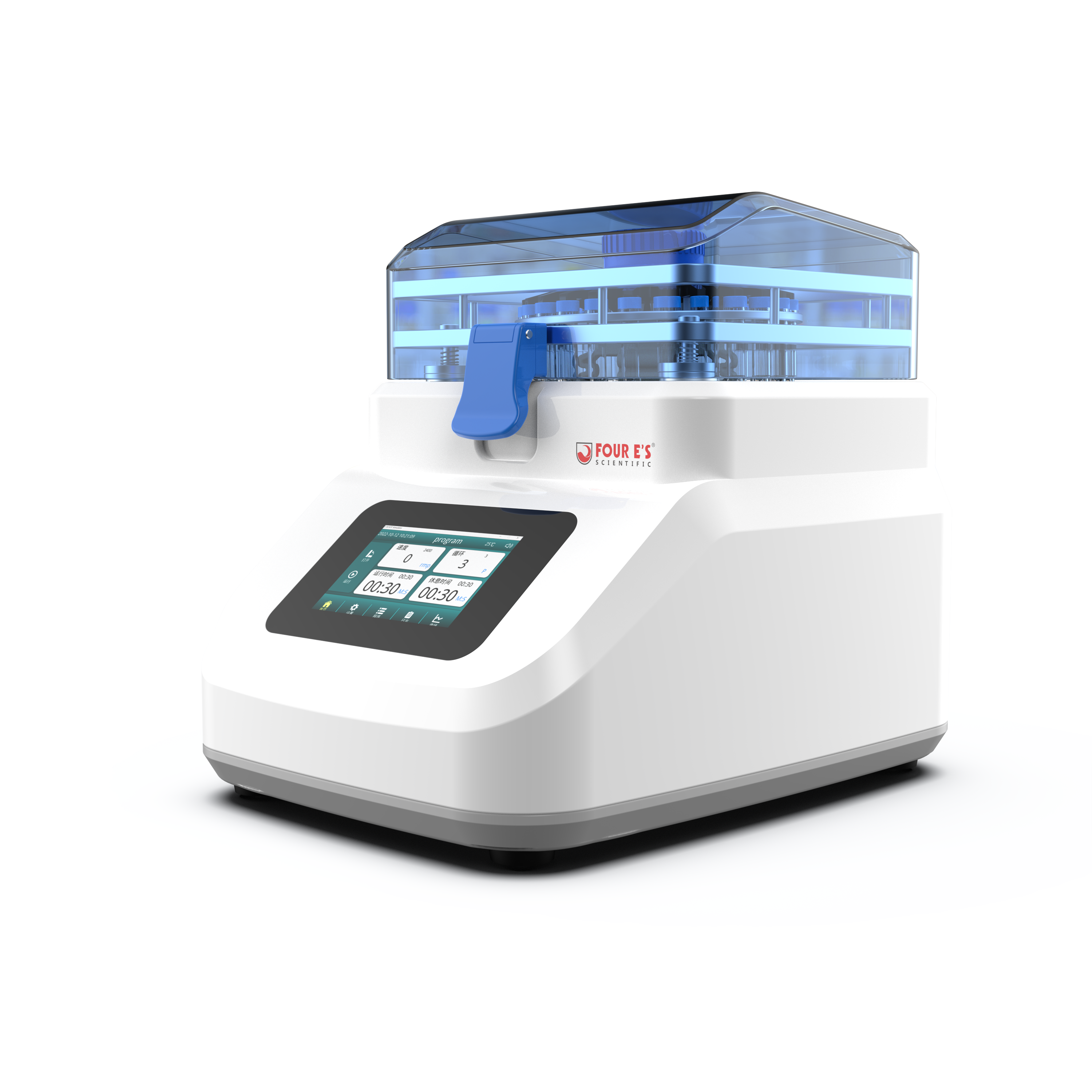

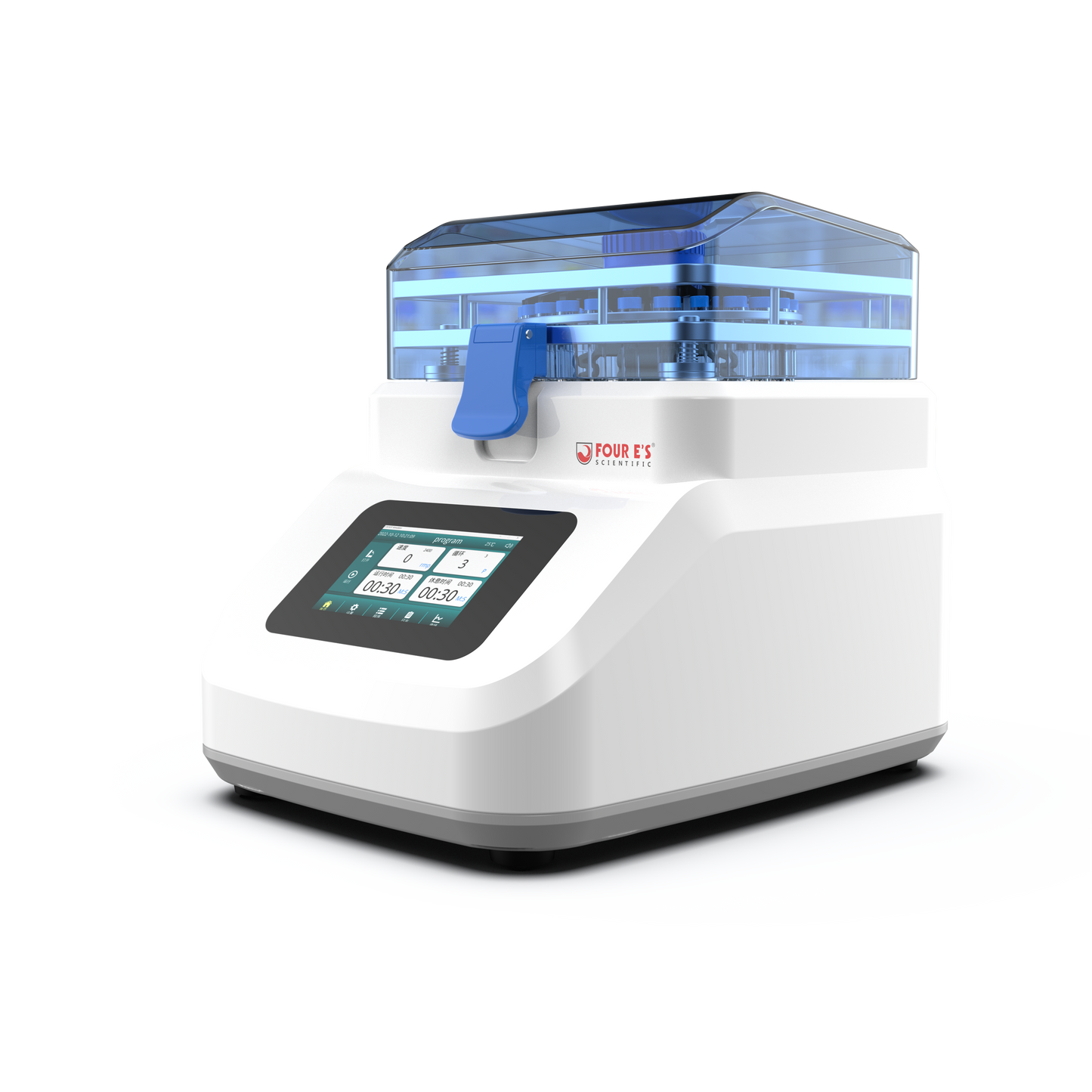

Bead Mill Homogenizer
In Stock: 0
The Bead Mill Homogenizer is a high throughput tissue homogenizing device capable of operating up to 24 tubes of 2mL. It completely lyses, grinds and homogenizes a broad variety of biological samples. The device subjects the samples placed in tubes containing micro-beads to a high speed, 3D motion, and as a result of the collision between the samples and the beads the samples are homogenized. After homogenization, samples can be centrifuged, and the supernatant collected for further processing. Cycle setting option is available where the unit can be programmed to operate in cycles with a rest period in between, especially to protect fragile, heat sensitive samples.
Couldn't load pickup availability
High-Throughput Performance
Designed to maximize productivity, this state-of-the-art homogenizer can process up to 24 tubes (2mL each) simultaneously, making it an excellent choice for laboratories with demanding sample preparation needs. Its powerful bead milling mechanism ensures rapid and consistent homogenization of even the toughest biological, environmental, or chemical samples. Whether you’re working with plant tissues, bacteria, or soft to hard materials, this homogenizer delivers reliable results every time. Save valuable time and increase efficiency without compromising the precision and reproducibility of your workflows.
Touch Screen
Powerful Homogenization
User-friendly
-
- Specifications
-
- Features
-
- Downloads
| Model | BMH024 |
| Sample Capacity | 24x2.0 ml |
| Motion Mode | 3D Motion |
| Speed range | 3.2 to 7 m/s (2000 to 4300 rpm)，increment 0.05m/s |
| Power | 500w |
| Power supply | AC100-240V，50/60Hz |
| Working time | 1s-90s，increment 1s |
| Interval time | 1s--120s，increment 1s |
| Cycles | 10 |
| Noise | <70 db |
| Grinding Beads | Glass，Ceramic，Steel |
| Interface | 5-inchTouch screen |
| Stored programs | 50 |
| Acceleration time | <4s |
| Deceleration time | <4s |
| Dimensions(Lx WxH) | 390x290x350mm |
| Weight | ≤27KG |
| Standard Capacity | 24Ă—2.0ml (Standard Rotor) |
| Optional Accessories | 12Ă—5.0mL rotor |
Features
-
â—Ź
High-Throughput: Can homogenize up to 24 tubes (2mL) simultaneouslyÂ
-
â—Ź
Rapid acceleration and deceleration for quick grinding: from rest to maximum speed in less  than 4 secondsÂ
-
â—Ź
Ergonomic tube locking system for faster loading and removal of the tubesÂ
-
â—Ź
Cycle setting option to operate in cycles with a rest period in between, to protect fragile, heat  sensitive samples.Â
-
â—Ź
Up to 50 programs can be stored in memory for future use
-
â—Ź
Comes with an intuitive touchscreen interface for easy parameters settings including speed, run time, rest time, number  of cycles
-
â—Ź
The ergonomically positioned 5-inch touch screen comes with an intuitive user interfaceÂ
-
â—Ź
Maintenance-free brushless motor
-
â—Ź
Can be used with a variety of grinding beads, such as zirconia, glass beads, ceramic beads, steel beads etc.
BMH024 User Manual
4E’S Vs Other Brands
Quick grinding
Touchscreen interface
High throughput
Two Year Warranty
