Clinical Centrifuge
In Stock: 2

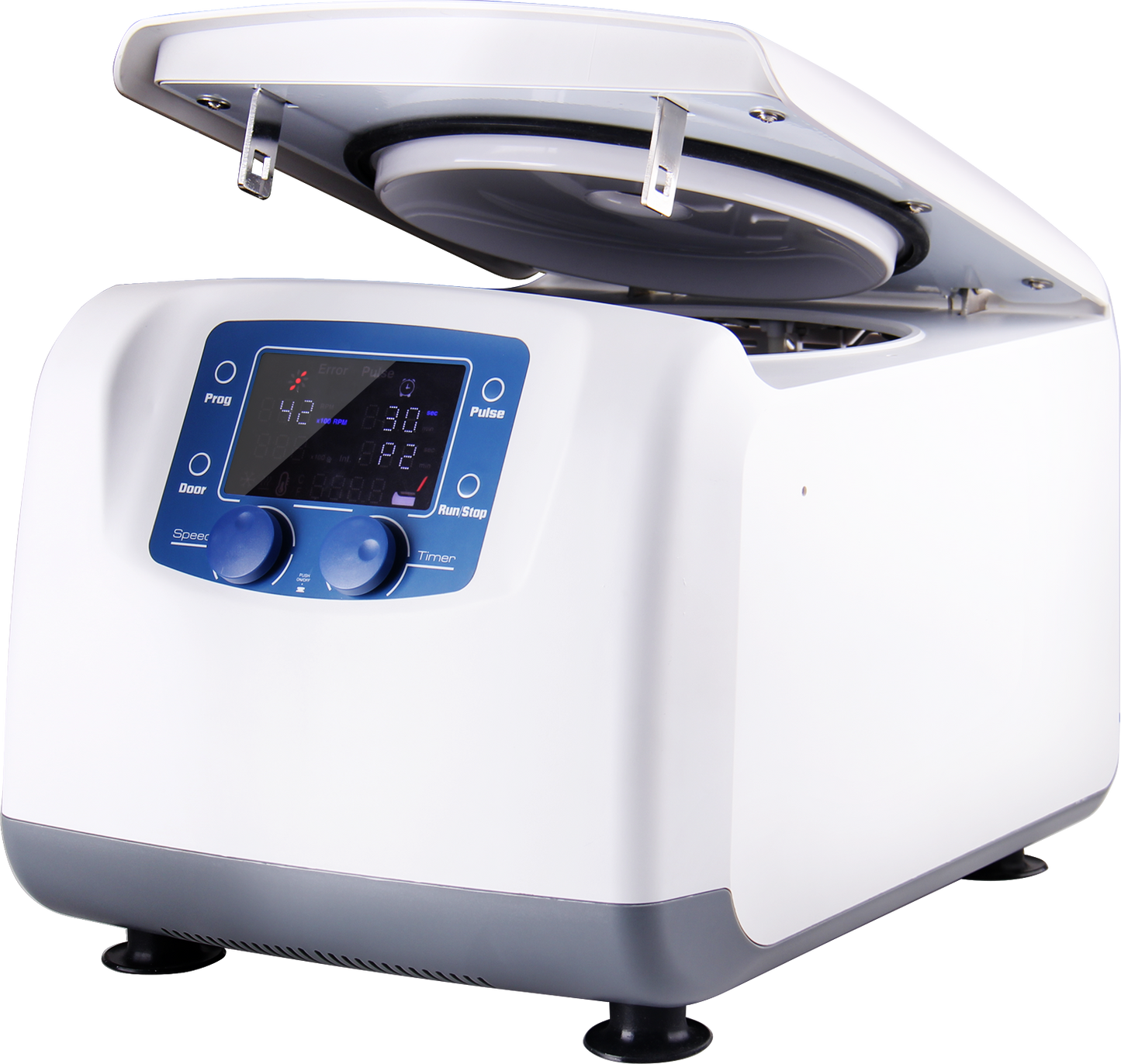

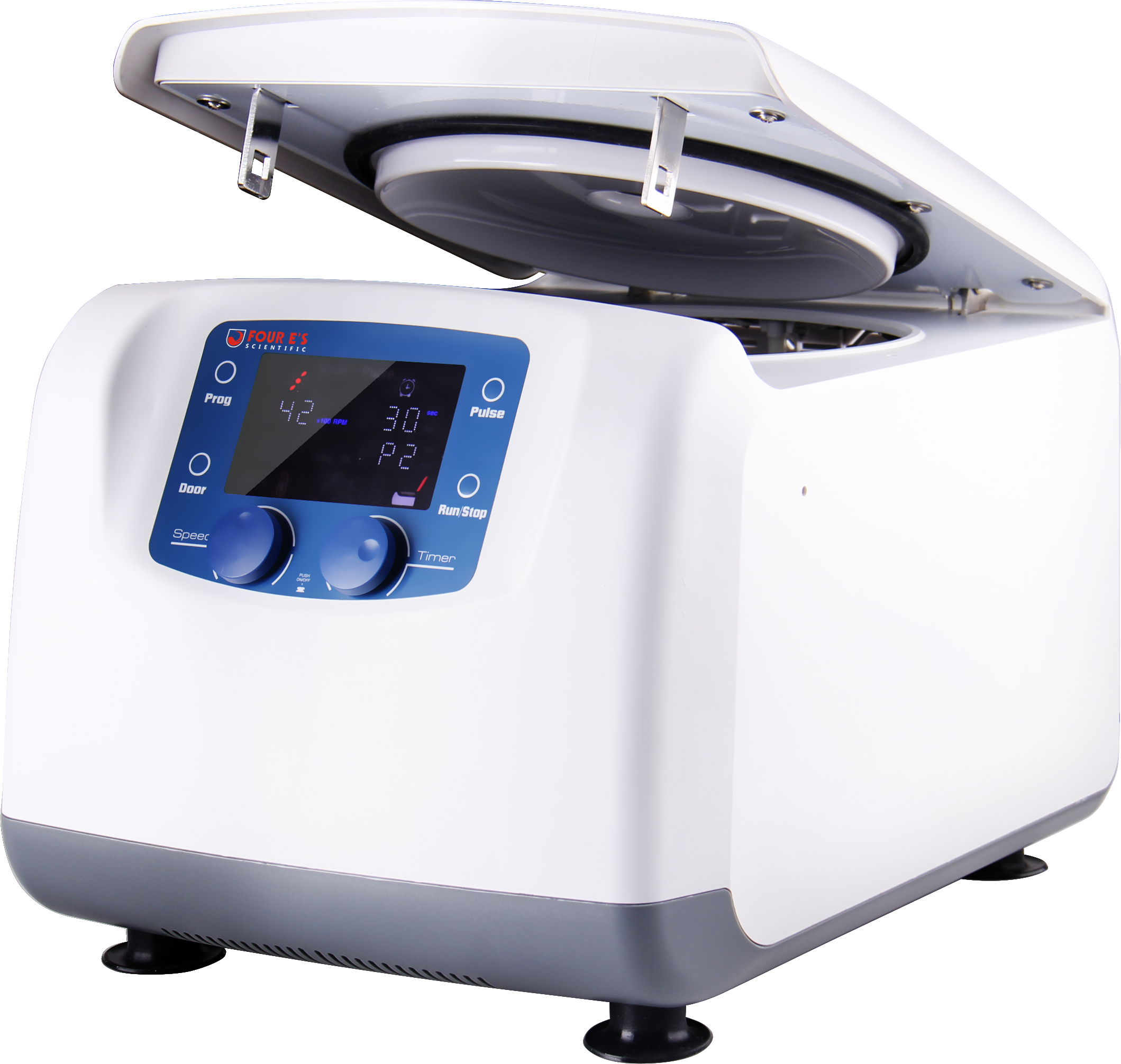

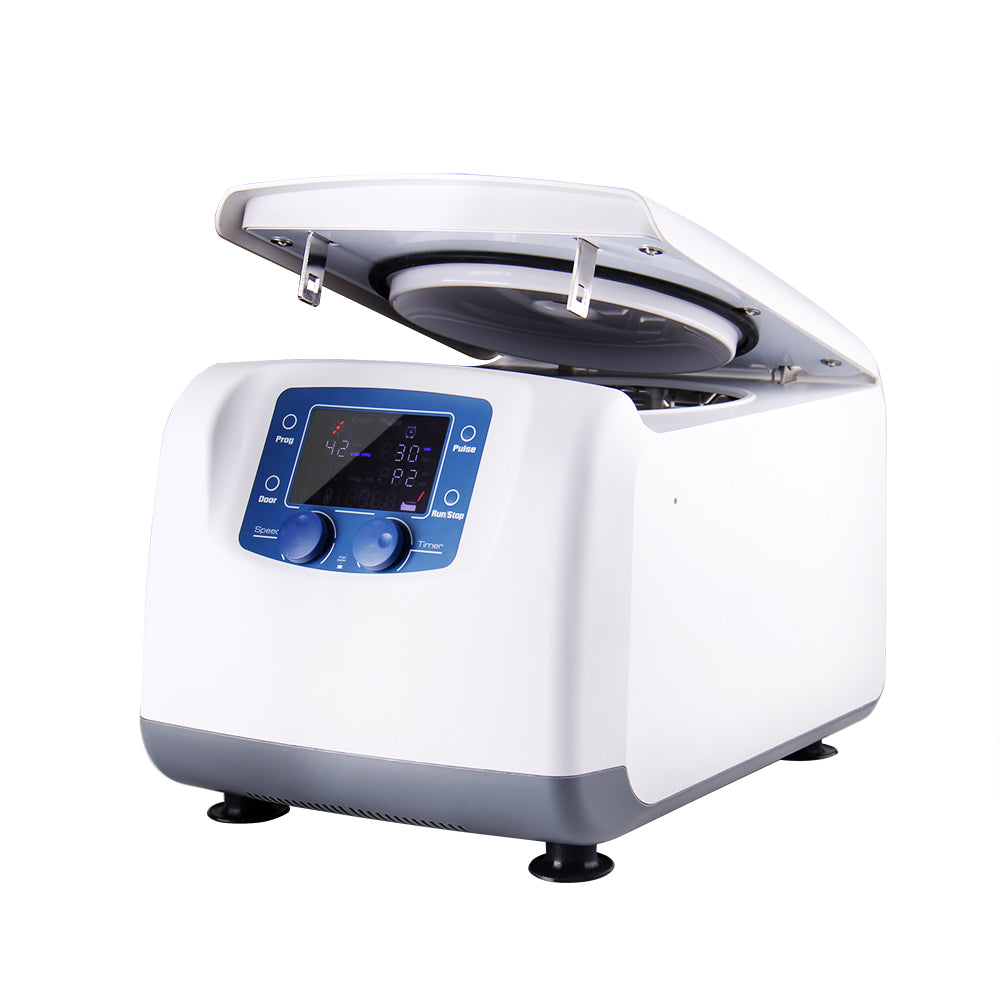

Designed for performance, reliability and quiet operation, FOUR E's Clinical Centrifuge with its large LED display and compact footprint stands out in your Lab. Micro-computer control gives high speed control, accuracy and excellent centrifugation. The Speed/RCF switch lets you set either RPM or RCF. It has ‘Timed’ and ‘Continuous’ operation modes, and also a ‘PULSE’ function which allows for quick spins. The twelve-position rotor accommodates 5mL, 7mL or 10mL culture or blood collection tubes and up to eight 15mL tubes. Other salient features include a brush-less DC motor, self-diagnostics function when turned on, and Air flow design to prevent sample heating.
Couldn't load pickup availability
Introduction
Designed to excel in performance, reliability, and operating quietly, the Clinical Centrifuge boasts a spacious LED display and a compact design that makes it stand out in your lab. With its micro-computer control system, this centrifuge offers precise speed control, exceptional accuracy, and superior centrifugation capabilities. Its advanced technology ensures efficient separation of samples, making it a valuable asset for various scientific and medical applications.
Silent Operation
Precise speed control
Easy Setting and Adjustment
-
- Specifications
-
- Features
-
- Downloads
| Model | CF0202003 |
| Speed range [rpm] | 300-4500 (increment: 100) |
| Max. RCF [x g] | 2500 |
| Speed accuracy [rpm] | ±45 |

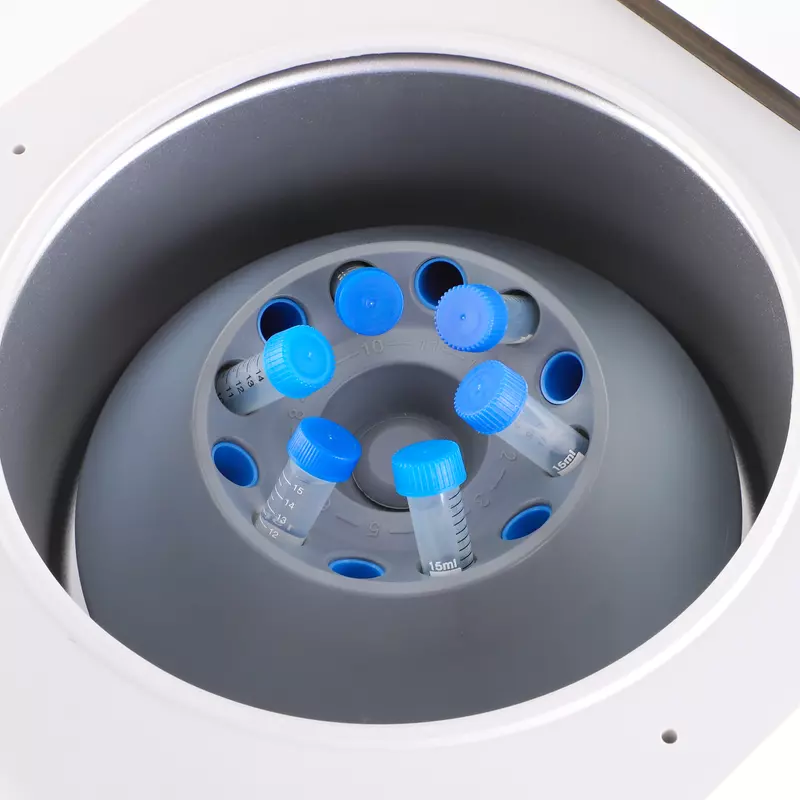

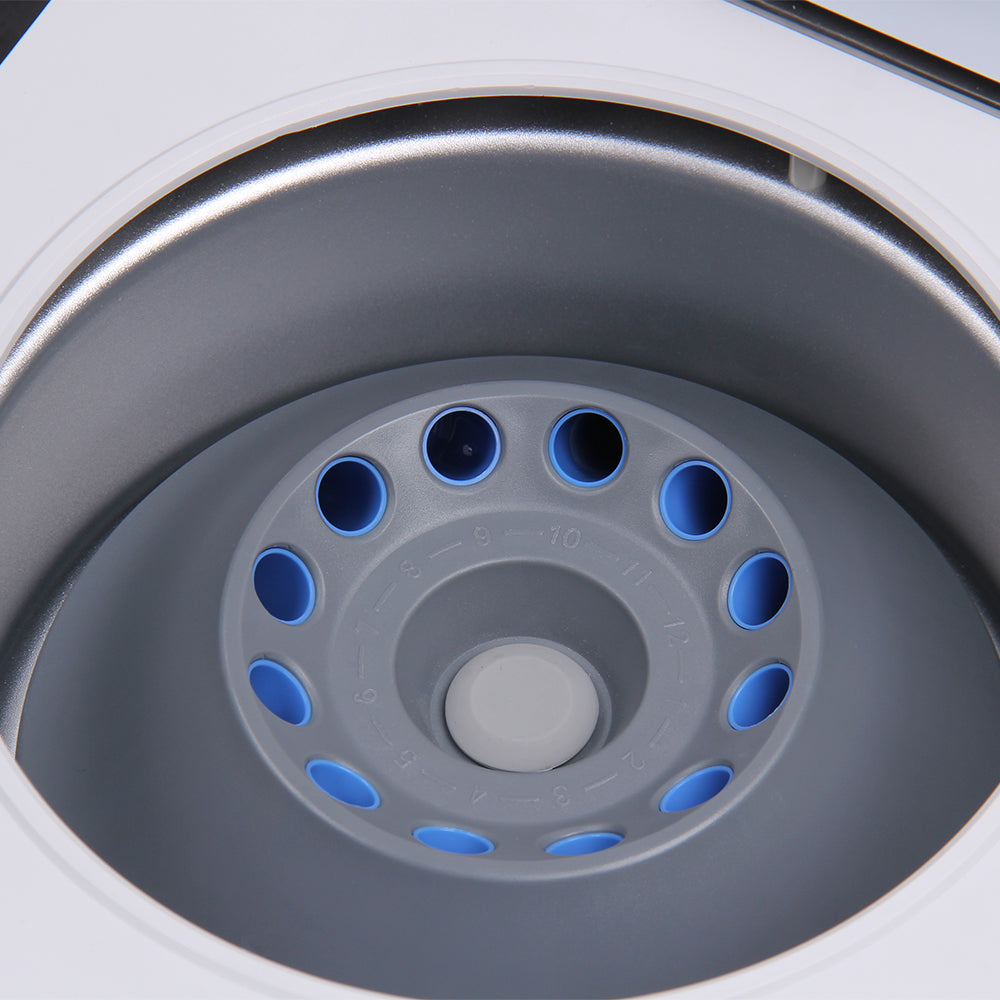

| Rotor capacity | 10mL/7mL/5mLx12; 15mLx6 |
| Time range | Timed operation: 30s-99min; Continuous operation |
| Motor | Brushless DC motor |
| Safety devices | Door interlock; Over-speed detection;Over-temperature detection;Automatic self-diagnostics |
| Power | Single-phase；AC110V-240V；50Hz/60Hz；2.5A |
| Acceleration/Braking time[Sec] | 20s↑ 15s↓ |
| Dimensions [mm] | 460 x 310 x 270 |
| Additional features | Speed/RCF switch; Short-time run function;sound-alert function |
Features
-
●
Micro-computer control gives high speed control accuracy and excellent centrifugation performance
-
●
Brushless DC motor is maintenance-free and provides rapid acceleration and deceleration
-
●

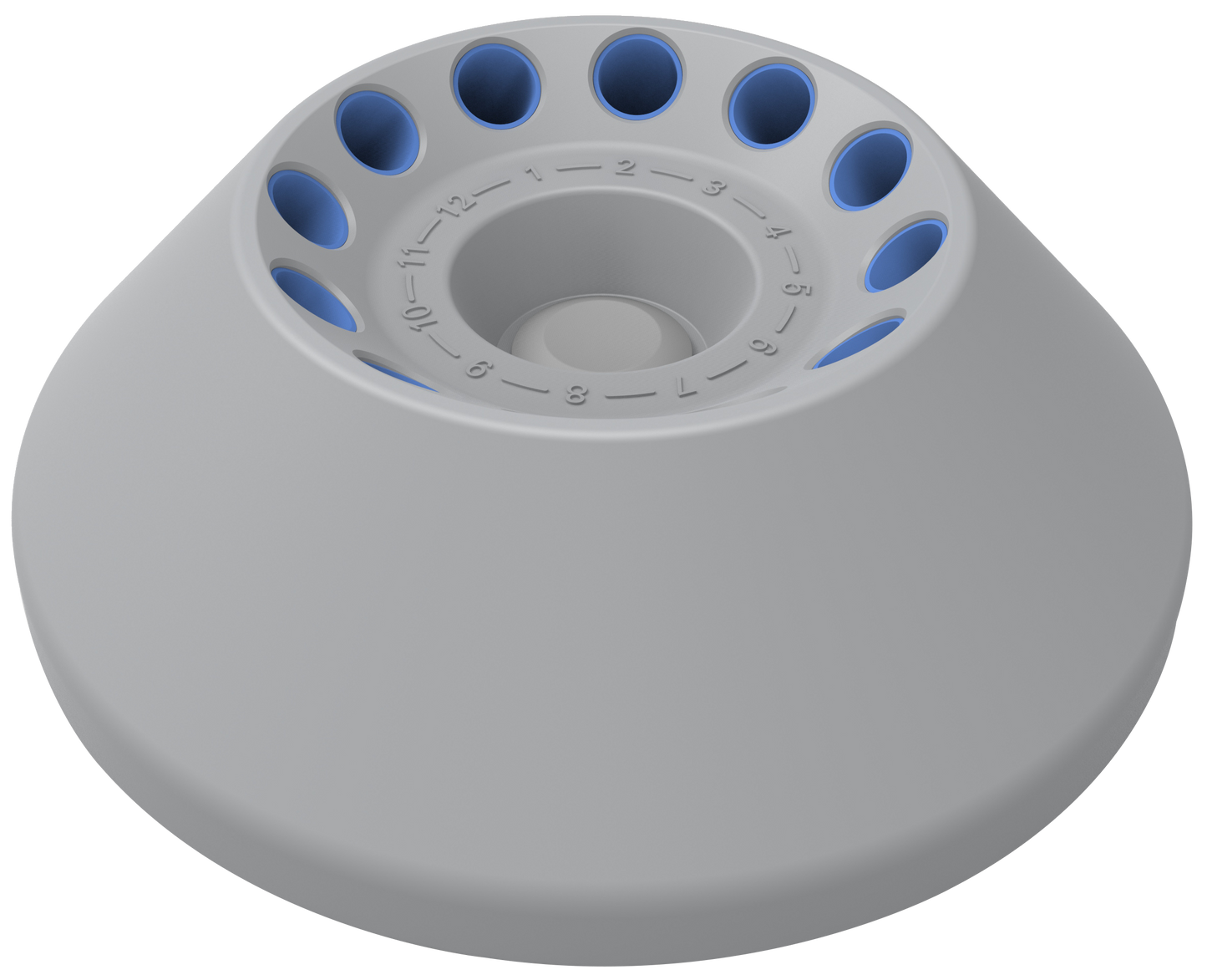

Rotor is made of tough, high-strength flame retardant material and is impact resistant, wear resistant and chemical resistant
-
●
Large LED display can show the running process and the error warning
-
●
Independent digital wheels adjust the speed and time
-
●
Two operation modes are available; timing operation of 30s-99m and continuous operation
-
●
Run parameters can be adjusted after the set speed is reached
-
●
The door interlock design makes the door open automatically after a beep when the run is completed, which can prevent samples overheating
-
●
Performs self-diagnostics every time the device is turned on, and also displays the accumulated running time together with parameters of the last run
-
●
Excellent dynamic balance ensures quiet and stable running
-
●
The short spin function is used for quick spins by pressing and holding PULSE key
CF0202003 Clinical Centrifuge User Manual
Application
The Clinical Centrifuge is widely used in the separation of serum, plasma, urea, blood samples and other routine applications in hospital and research laboratories. By efficiently separating different components of blood, it enables accurate testing and analysis, leading to timely and precise medical interventions. In research settings, this device is indispensable for conducting experiments that require the isolation of specific components for further study.
4E’S Vs Other Brands
Precise speed control
Silent operation
User-friendly operation
Two Year Warranty
