Heat Cool Thermo Mixer

In Stock:

Product Information Product code : TMX100C

Our Thermo Mixer series offer accurate temperature control and excellent mixing performance. They are ideal for sample incubation, mixing and preservation and designed for a variety of molecular biology applications that require consistent and precise results.

 One of the key features of our Thermo Mixer series is their ability to maintain a stable and uniform temperature throughout the incubation process. This is crucial for molecular biology applications that require precise and consistent temperature conditions. By ensuring a reliable temperature environment, our Thermo Mixers enable researchers to obtain accurate and reproducible results.

 In addition to temperature control, our Thermo Mixers also excel in their mixing capabilities. They utilize advanced technology to ensure efficient and thorough mixing of samples, even those with different viscosities or densities.

This allows researchers to achieve homogeneity in their experiments, reducing the risk of experimental errors or inconsistencies.
Type: Heat Cool Thermo Mixer with 3mm Mixing Orbit Diameter (including one 24*1.5mL block)
Request a Quote Contact Us For Availability
Choose distributor

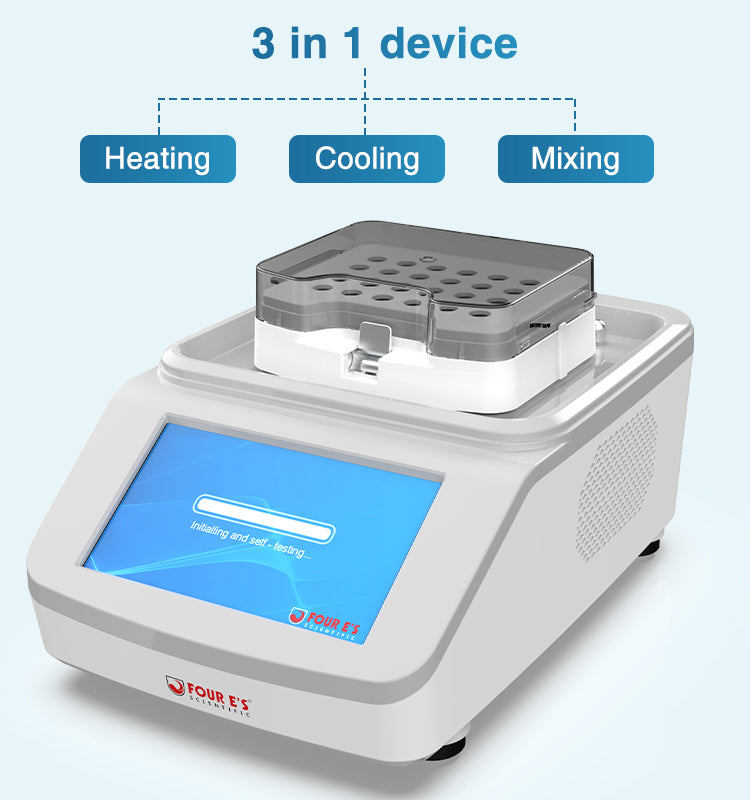

3 in 1 Device

Our Thermo Mixer is a versatile instrument that combines heating, cooling, and mixing functionalities in one device. With precise temperature control and exceptional mixing capabilities, this equipment is essential for various applications in molecular biology. It is ideal for sample incubation, mixing and preservation and designed for a variety of molecular biology applications that require consistent and precise results.

Excellent mixing capability

Intuitive Touchscreen

Useful Settings and Functions

  • Specifications
  • Features
  • Downloads
Name Heat Cool Thermo Mixer Heat Only Thermo Mixer Heat Cool Incubator
Model TMX100C TMX100 DBI100C
Type Heating/Cooling/Mixing Heating/Mixing Heating/Cooling
Speed Range 250 to 3000rpm 250 to 3000rpm /
Mixing Orbit (Diameter) 3.0mm 3.0mm /
Temperature Control Range Ambient-15โ„ƒ to 100โ„ƒ Ambient+5โ„ƒ to 100โ„ƒ Ambient-15โ„ƒ to 100โ„ƒ
Recommended  Ambient Temperature 10ยฐC to 30โ„ƒ 10ยฐC to 30โ„ƒ 10ยฐC to 30โ„ƒ
Temperature Setting Range 0โ„ƒ to 100โ„ƒ 0โ„ƒ to 100โ„ƒ 0โ„ƒ to 100โ„ƒ
Display 7-inch Color Touchscreen 7-inch Color Touchscreen 7-inch Color Touchscreen
Sample Capacity 0.1ml to 50ml 0.1ml to 50ml 0.1ml to 50ml
Standard Module 1.5ml*24-Well Plate 1.5ml*24-Well Plate 1.5ml*24-Well Plate
Temperature Accuracy ยฑ0.2ยฐC at 20โ€“40 ยฐCยฑ0.5ยฐC at๏ผœ20โ„ƒ or ๏ผž40โ„ƒ ยฑ0.2ยฐC at 20โ€“40 ยฐCยฑ0.5ยฐC at๏ผœ20โ„ƒ or ๏ผž40โ„ƒ ยฑ0.2ยฐC at 20โ€“40 ยฐCยฑ0.5ยฐC at๏ผœ20โ„ƒ or ๏ผž40โ„ƒ
Temperature Uniformity ยฑ0.5โ„ƒ ยฑ0.5โ„ƒ ยฑ0.5โ„ƒ
Temperature Stability ยฑ0.5โ„ƒ ยฑ0.5โ„ƒ ยฑ0.5โ„ƒ
Temperature Resolution 0.1โ„ƒ 0.1โ„ƒ 0.1โ„ƒ
Heating Rate (4 options) Full Power๏ผŒ5โ„ƒ/min.๏ผŒ2โ„ƒ/min.๏ผŒ1โ„ƒ/min. Full Power๏ผŒ5โ„ƒ/min.๏ผŒ2โ„ƒ/min.๏ผŒ1โ„ƒ/min. Full Power๏ผŒ5โ„ƒ/min.๏ผŒ2โ„ƒ/min.๏ผŒ1โ„ƒ/min.
Cooling Rate (4 options) Full Power๏ผŒ2โ„ƒ/min.๏ผŒ1โ„ƒ/min.๏ผŒ0.5โ„ƒ/min. / Full Power๏ผŒ2โ„ƒ/min.๏ผŒ1โ„ƒ/min.๏ผŒ0.5โ„ƒ/min.
Programs Programmable up to 5 Steps Programmable up to 5 Steps Programmable up to 5 Steps
Cycle Times Up to 999 times Up to 999 times Up to 999 times
Calibration 4 Calibration Points (10ยฐC/40ยฐC/70ยฐC/95ยฐC) 4 Calibration Points (10ยฐC/40ยฐC/70ยฐC/95ยฐC) 4 Calibration Points (10ยฐC/40ยฐC/70ยฐC/95ยฐC)
Timer 0-99h 59min 59s 0-99h 59min 59s 0-99h 59min 59s
Additional Features Pre-Heating๏ผŒPower Failure Recovery Pre-Heating๏ผŒPower Failure Recovery Pre-Heating๏ผŒPower Failure Recovery
Output 300W (max.) 300W (max.) 300W (max.)
Power Supply 110-220V AC๏ผŒ50Hz/60Hz 110-220V AC๏ผŒ50Hz/60Hz 110-220V AC๏ผŒ50Hz/60Hz
Weight (including standard module) ๏ผœ10kg ๏ผœ10kg ๏ผœ8kg
Dimension (L x W x H) 332*227*185mm(including standard module๏ผŒwithout lid) 332*227*185mm(including standard module๏ผŒwithout lid) 332*227*185mm(including standard module๏ผŒwithout lid)

Features

  • โ—

    The instrument heats up quickly and uniformly, controls the temperature precisely and is highly stable

  • โ—

    Microprocessor control ensures superior temperature stability and uniformity

  • โ—

    Brushless DC motor, low-noise, durable and maintenance-free

  • โ—

    LCD touchscreen displays the current temperature and speed information

  • โ—

    Accurate temperature calibration

  • โ—

    Auto resumption after power failure

  • โ—

    Interchangeable modules with automatic detection function

  • โ—

    Steps can be repeated in the repeat mode

  • โ—

    Comes with a standard module (1.5ML*24 well-plate)

  • โ—

    Modules can be customized for various specifications and sizes

Flexibility and Versatility

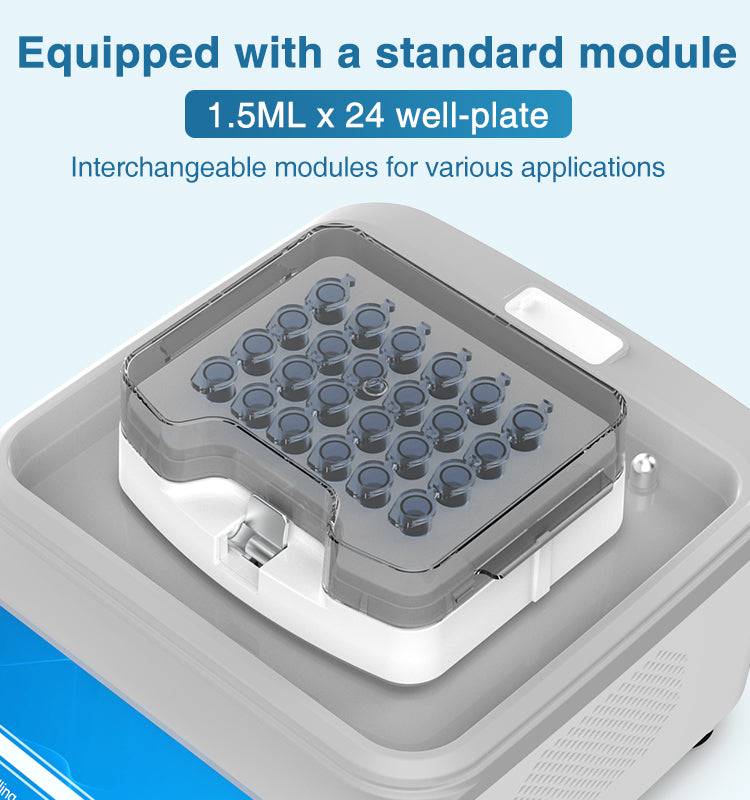

The Thermo Mixer comes with a standard module that can accommodate a 24-well plate of 1.5ml capacity. Modules can be tailored to specific requirements and sizes, offering flexibility and versatility for various applications, allowing users to optimize their experiments according to their needs. In fact, studies have shown that the ability to customize modules can significantly increase efficiency and productivity in laboratory workflows. By offering this level of customization, the Thermo Mixer enables researchers to streamline their processes and achieve more consistent and reliable results.

4Eโ€™S Vs Other Brands

Intuitive touchscreen

Two Year Warranty

Accurate temperature control

Excellent mixing capability

Frequently Asked Questions

Everything you need to know about product and billing. Canโ€™t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

What is the warranty on the item?

Four E's Equipment comes with a two year all-inclusive warranty.

Do you stock this item?

Yes, this item is in stock at our NJ warehouse.
