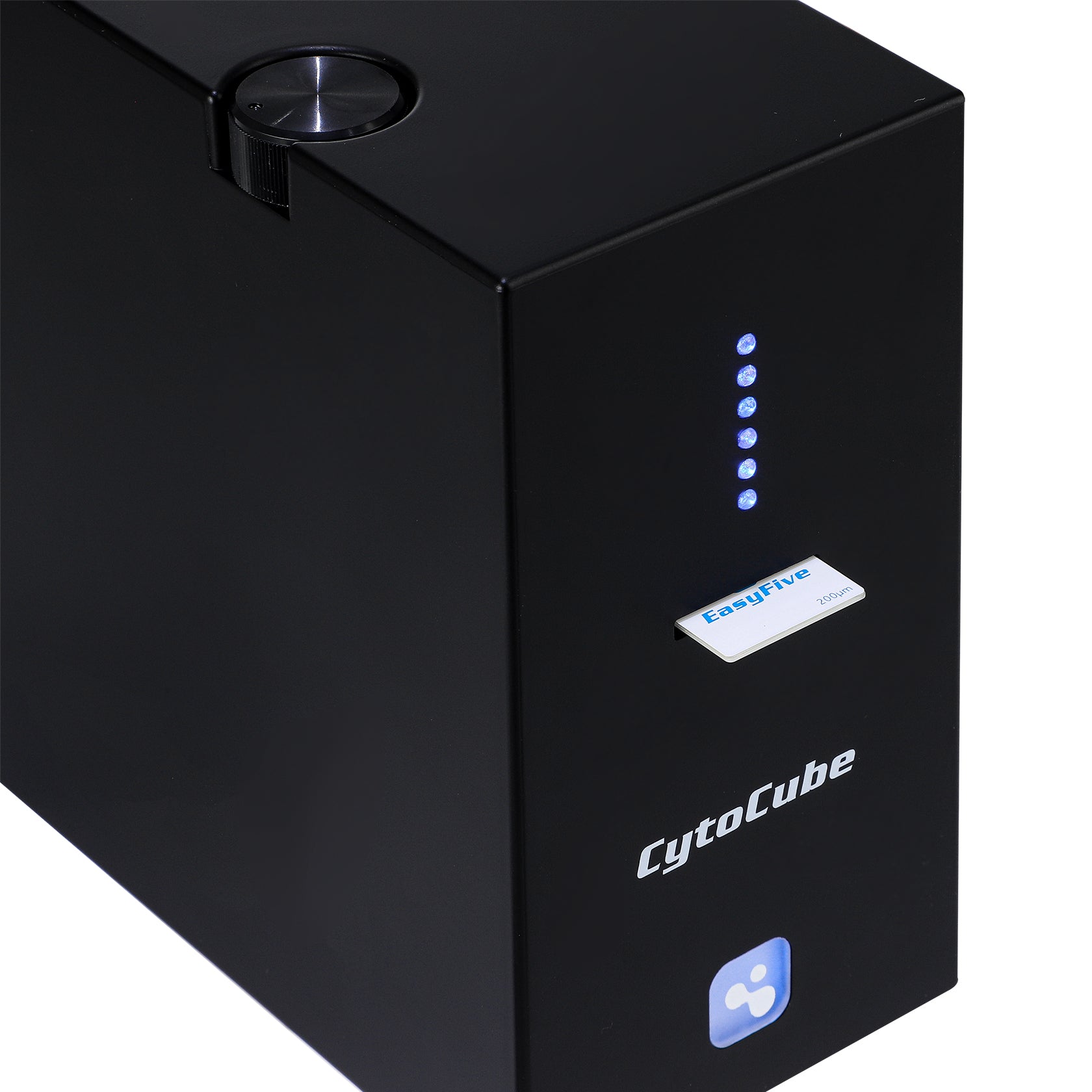

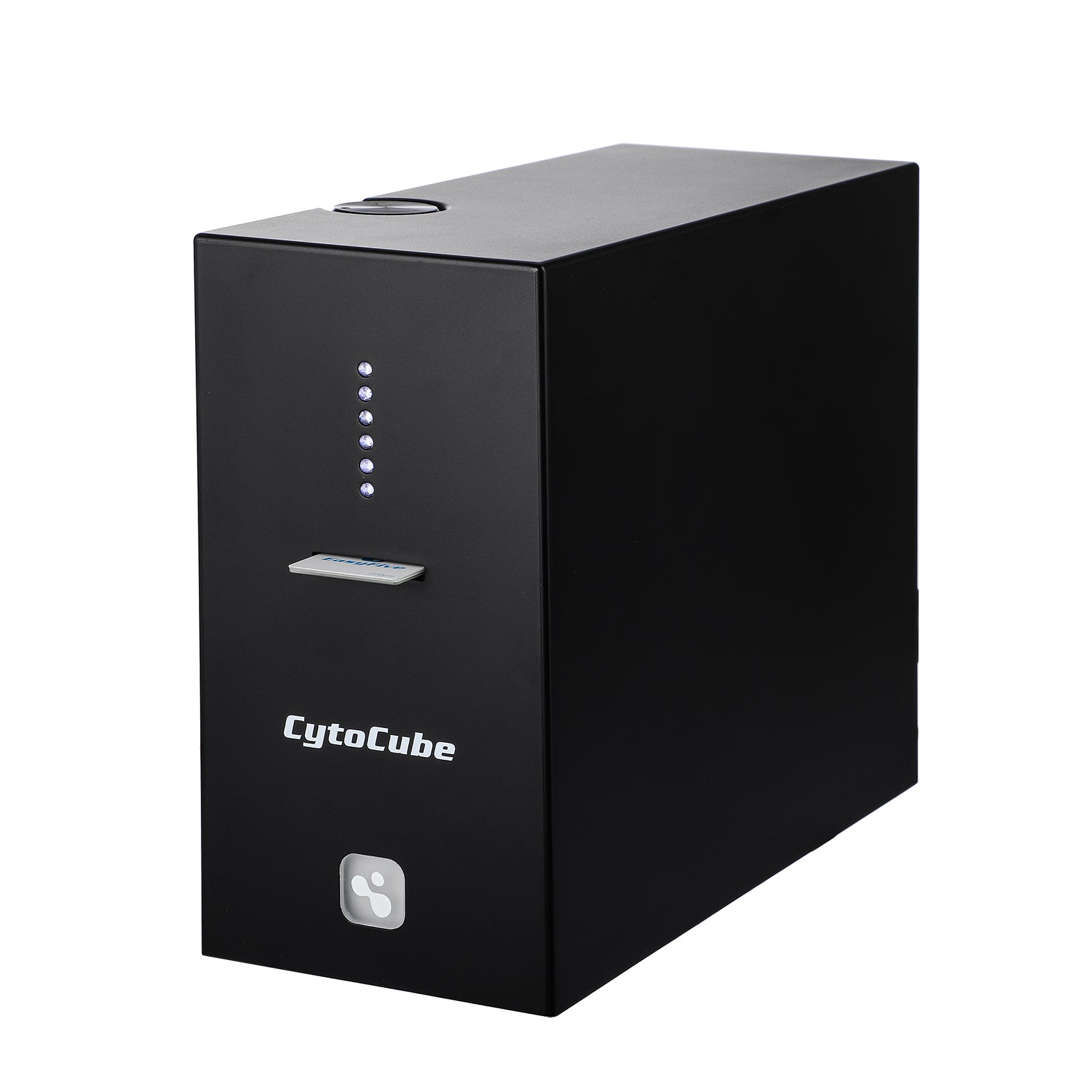

Portable Cell Counter – CytoCube™

Product Information Product code : CytoCube With its high-speed counting, image-based cell analysis capabilities and super-tiny footprint, the CytoCube provides rapid and accurate cell counting and viability assessments. The device is designed to be user-friendly, offering easy set-up and operation for researchers and scientists. Its automated cell detection and tracking features make it an ideal tool for cell biology, immunology, and drug discovery research. The CytoCube’s small size allows it to be portable, accommodating many labs at once. The 4E's Cell Counter - CytoCube is a reliable and efficient solution for automated cell counting and analysis.

How it works

Prepare & Load Sample

Stain with Trypan Blue and load up to six samples into the CytoCube. The easy to read LED lights indicate which sample is being analyzed. Easily move between samples by moving the slide in or out.

Run Analysis

With one of the quickest read-times in the industry, the CytoCube uses an advanced imaging system to capture images of the cells and analyze them to provide accurate cell counts and viability assessments. Reads accurately in 2 seconds per sample.

Review Results & Export Data

CytoCube’s software can run on any Windows PC and provides information on cell concentration, viability, and morphology, depending on the type of analysis performed. Export the data in PDF, XLS, JPG formats.

Portable Cell Counter – CytoCube™

We’re Serving Laboratory Market Worldwide

At 4E's, we ensure quality by implementing rigorous testing and inspection protocols on our products, which allows us to deliver reliable laboratory equipment to our customers. Our knowledgeable and responsive support team provides excellent customer assistance, ensuring that our customers receive the best possible experience when working with us.

10,000+

Customers

3,000+

Answered calls

5,000+

Emails answered

Specification

Model CytoCube
Sample slots in one slide and modes 6 Sample Slots with Bright Field and Trypan Blue Modes
CV value ≤5%
Measuring time for simple sample 2s
Cell concentration 1x10^4 - 3x10^7 cells/mL
Cell diameter range 5-200 µm
Cell viability detection range 0-100%
Sample volume 25 µl
CV value ≤5%
Weight 1.8 kg
Dimensions 255*164*97 mm
Data output PDF, JPG, XLS Formats Available
Image-based cell analysis
Automated cell detection & tracking
High-speed counting

Image-based cell analysis

The CytoCube captures high-resolution images of the cells, allowing for detailed analysis of cell morphology, size, and shape. The unit generates a bar graph of cell diameter distribution. Bright Field and Trypan Blue modes available.

Automated cell detection & tracking

The device uses an advanced imaging system to automatically detect and track cells, minimizing user error and providing accurate and reliable results.

High-speed counting

The CytoCube can analyze up to 10,000 cells per second, providing rapid and efficient cell counting.

Image-based cell analysis Automated cell detection & tracking High-speed counting
Image-based cell analysis Image-based cell analysis
Automated cell detection & tracking Automated cell detection & tracking
High-speed counting High-speed counting

Image-based cell analysis

The CytoCube captures high-resolution images of the cells, allowing for detailed analysis of cell morphology, size, and shape. The unit generates a bar graph of cell diameter distribution. Bright Field and Trypan Blue modes available.

Automated cell detection & tracking

The device uses an advanced imaging system to automatically detect and track cells, minimizing user error and providing accurate and reliable results.

High-speed counting

The CytoCube can analyze up to 10,000 cells per second, providing rapid and efficient cell counting.

Image-based cell analysis Automated cell detection & tracking High-speed counting

High-resolution images, quickly

In under 2 seconds, the CytoCube captures high-resolution images of the cells, which can be used for detailed analysis of cell morphology, size, and shape. The imaging system is able to capture images in multiple focal planes, allowing for accurate detection of individual cells even in complex samples. These high-resolution images can be used to determine the health and quality of cells.

Accurate Viability Assessments

In addition to cell counting, the CytoCube is also able to provide accurate assessments of cell viability. Using a combination of Trypan Blue and imaging techniques to detect live and dead cells, CytoCube provides accurate and reliable viability assessments. This is especially useful for cell culture in drug discovery, vaccine development, and process development optimization.

User-Friendly Interface

The device is compatible with any Windows PC. Simply install the software and connect the tiny cell counter. The software is intuitive, and the device provides step-by-step instructions, making it easy for even novice users to operate the CytoCube.

Frequently Asked Questions

Everything you need to know about product and billing. Can’t find the answer you are looking for? Please write your question to us at info@4Es-USA.com

What types of samples can be analyzed with the CytoCube?

The CytoCube can accommodate a variety of suspension cell types with diameters between 5 and 200 um.

Is there warranty for the CytoCube?

Yes, we have a two-year warranty on our Portable Cell Counter - CytoCube.

How often should I clean the CytoCube?

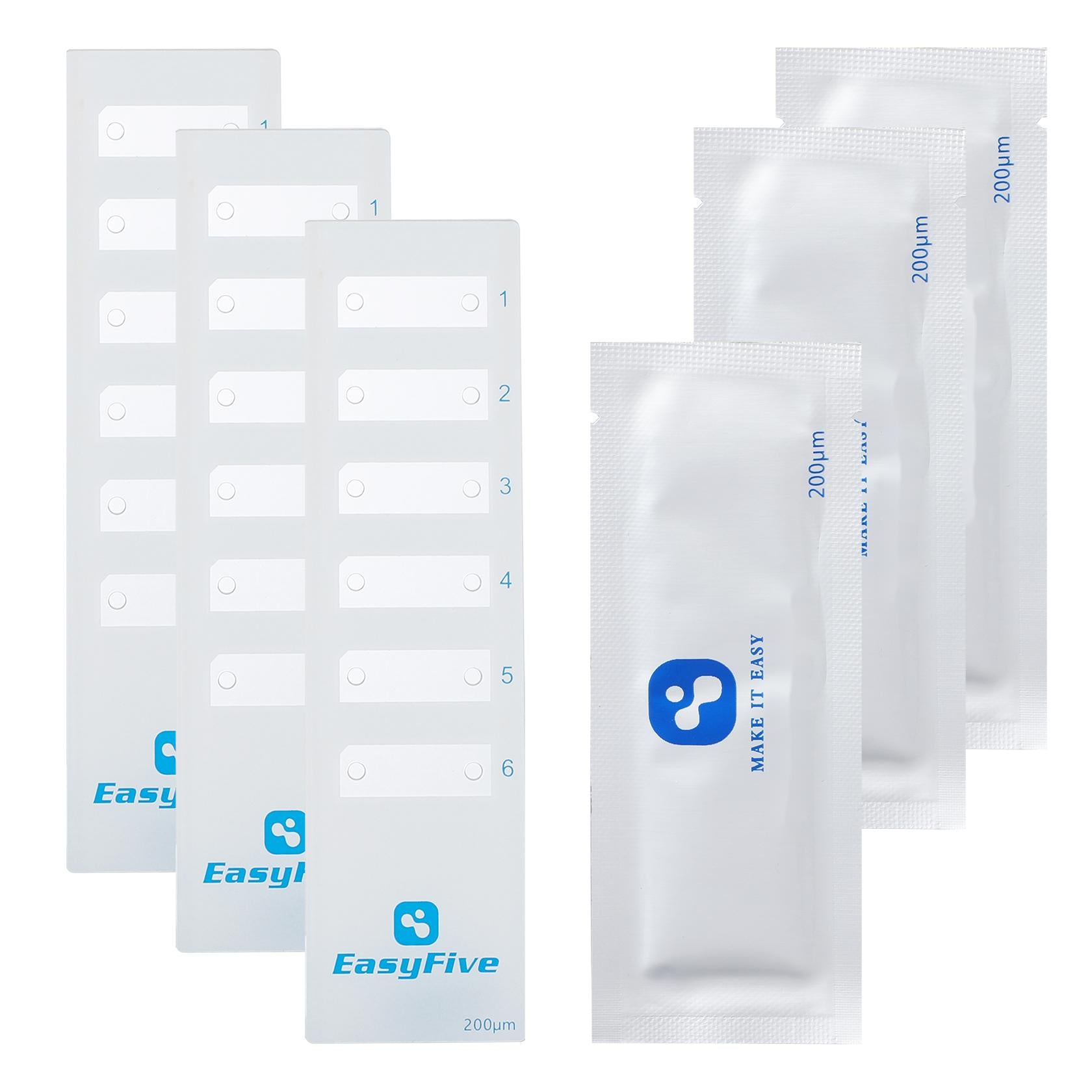

The CytoCube does uses inexpensive polycarbonate slides to perform the cell analysis. It does not require cleaning because there is no contact with the liquid material.

How long does it take to perform an analysis?

The time it takes to perform an analysis can vary depending on the sample type and analysis parameters. However, the CytoCube is designed to provide rapid and efficient cell counting and analysis, and can analyze up to 10,000 cells per second.
