Variable Speed Vortex Mixers | Analog and Digital Models
Couldn't load pickup availability
Designed Specifically for Your Lab
Four E’s is one of the leading manufacturers of vortexing devices. The 4E's Variable Speed Vortex Mixer can streamline your work and deliver consistent results. Offered in both digital and analog variants, this powerful little mixer has touch and continuous operation modes, a strong vortex mixing with a speed range of 0-3000rpm, and an easy-to-use knob for precise speed adjustment. These vortex mixers can fully mix a full 50mL liquid in container within 3 seconds, so you can complete your mixing tasks quickly and efficiently. Both vortex mixers are compatible with the dozens of attachments available to hold tubes, plates, and flasks. Its robust aluminum base housing with suction feet ensures stable operation, while the brushless DC motor with perfect dynamic balance stands firmly planted to the laboratory benchtop.
Quiet
Operation
User-friendly
Interface
Small Foot
Prints
Multiple Block
Options
-
- Specifications
-
- Features
-
- Downloads

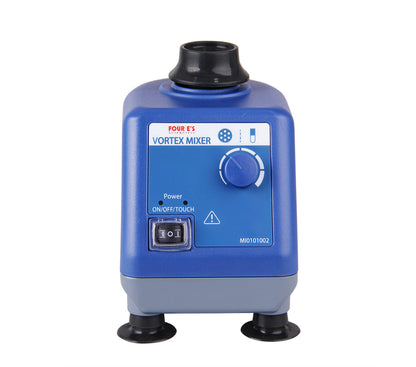

Vortex Mixer Analog Control

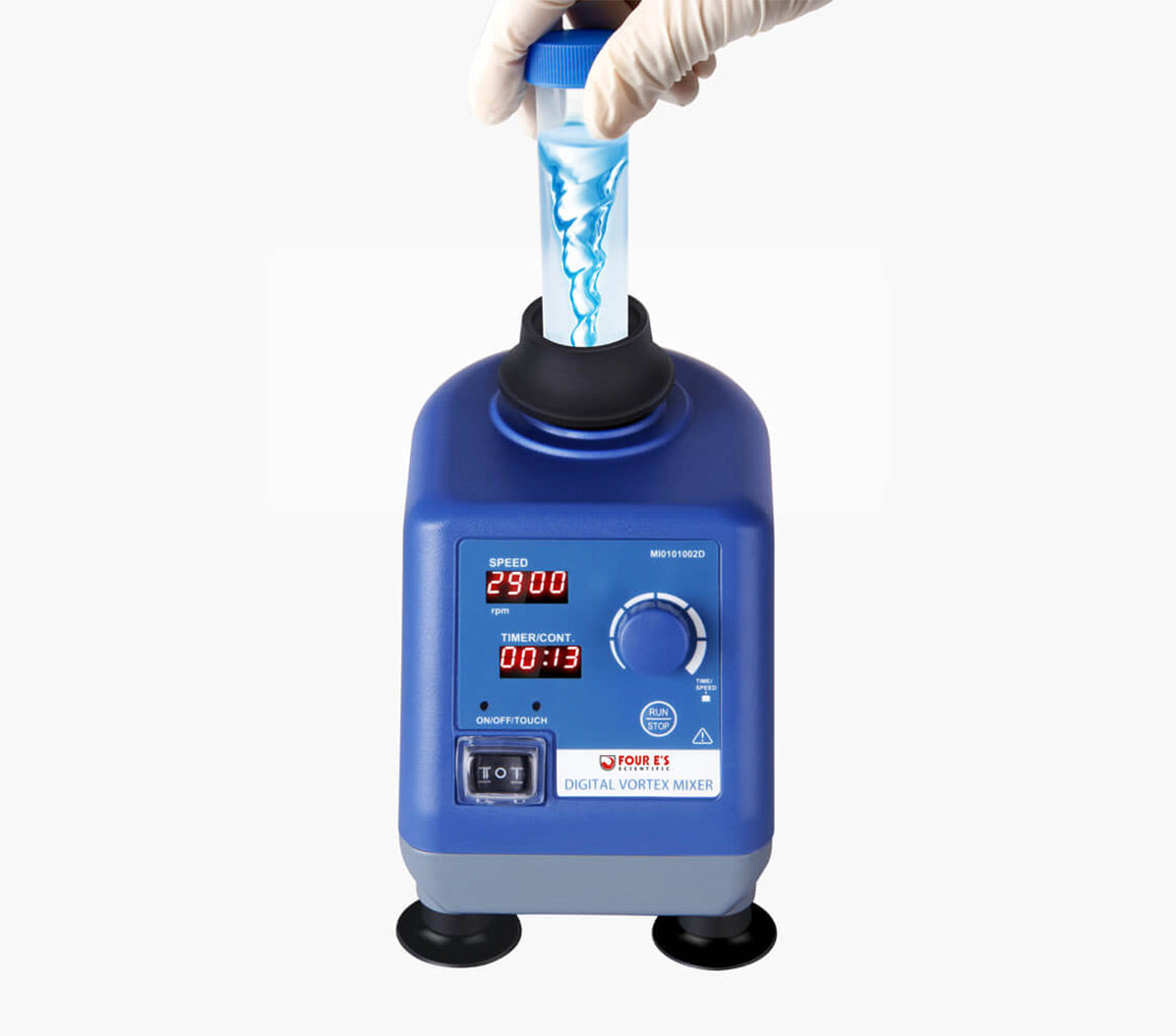

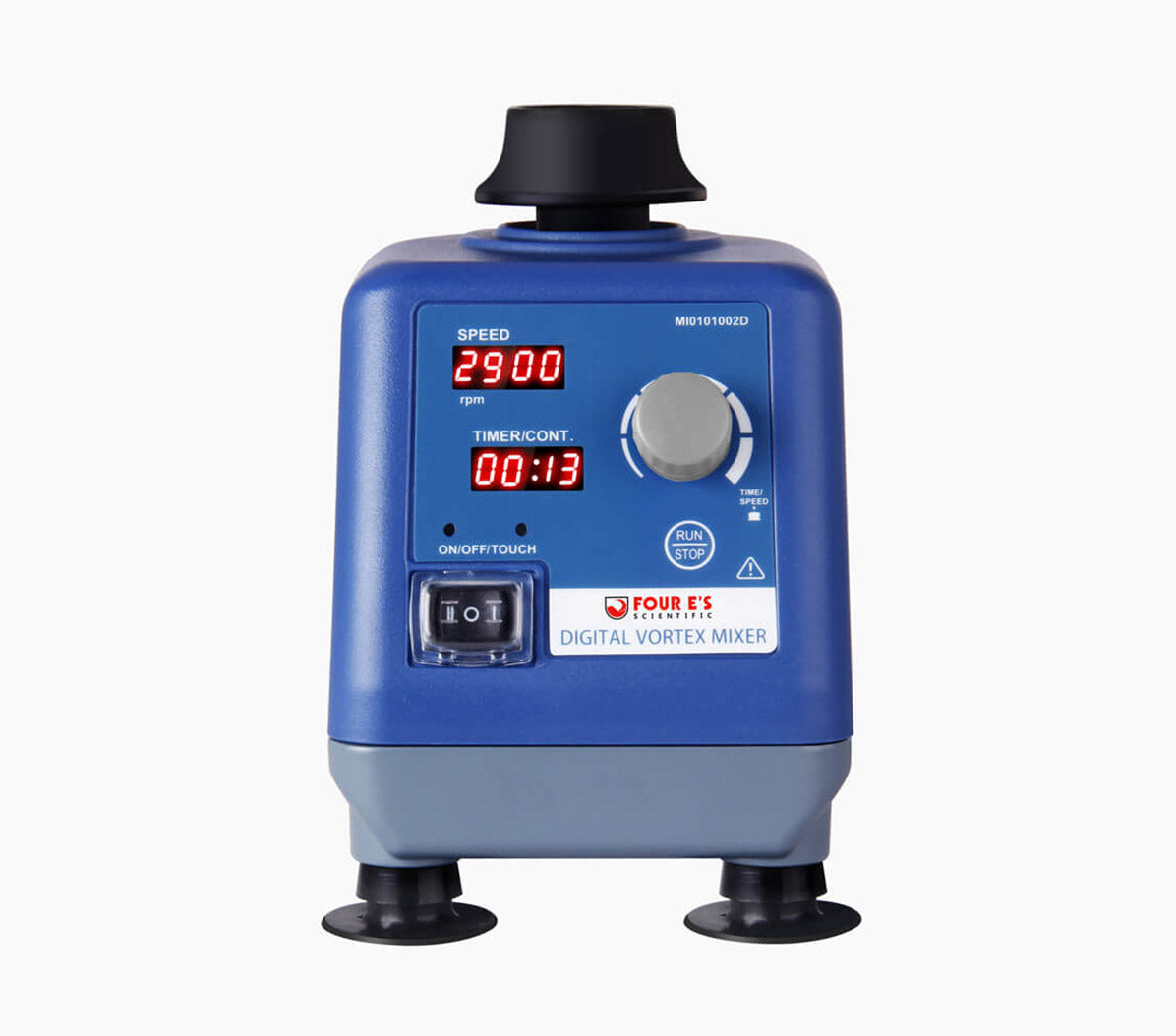

Vortex Mixer Digital Control with Timer
| Model Number | MI0101002 | MI0101002D |
| Operation mode | Continuous / touch operation | Continuous / touch operation |
| Type of movement | Orbital | Orbital |
| Orbital diameter | 6mm | 6mm |
| Speed range | 0-3000rpm | 0-3000rpm |
| Speed display | Scale | LED |
| Permissible ambient temperature | 5-40°C | 5-40°C |
| Permissible relative humidity | 80% | 80% |
| Protection class accordin to DIN EN 60529 | IP21 | IP21 |
| Voltage [VAC] | 200-240 / 115 /100V compatible | 200-240 / 115 /100V compatible |
| Power [W] | 36 | 36 |
| Frequency [Hz] | 50/60 | 50/60 |
| Motor rating input [W] | 30 | 30 |
| Motor rating output [W] | 15 | 15 |
| Dimensions (W x H x D) | 107x146x166mm | 107x146x166mm |
| Weight [kg] | 3 | 3 |
Features
-
● Temperature setting up to 100°C
-
● Easy to read LED display
-
● Interchangeable blocks for multiple tube types
-
● Compact design with Actual and Set Temp display
-
● Can store up to 5 temperature control programs
-
● Low voltage operation, can be powered with a car charger
Vortex Mixer Datasheet VMX
Per4mance_VMX200201_IM
Per4mance_VMX200202_IM
Built to Last
4E's designs vortex mixing equipment built to stand the test of time offered at excellent price points. We do this by focusing on a strong engineering department with in-depth understanding of motors, mixing, materials, electronics, and balance. The VMX series of vortex mixers are easy to use and dependable due to their simple controls and high-quality components. Whether you are mixing plates, test tubes, blood collection tubes, microcentrifuge tubes, or flasks there are many options available.
Attachments for All
The VMX series of vortex mixers is supplied with a cup attachment that can be used for most small laboratory consumables but the utility of the equipment doesn’t stop there. Four E’s has a variety of attachments for different consumable shapes and sizes. These attachments are made of sturdy foam and will accommodate many samples. Contact a Four E’s USA product specialist if you have any questions regarding our vortex mixer attachments.
4E’S Vs Other Brands
4E’S
Brand X
Brand Y
Multiple Safety Features
Rotor Options
Affordable Price Point
LED Controls
Fast Acceleration and Deceleration Time
Small Foot Print
Brushless DC Motor
